FNIRSI® DST-210 / DST-201 Handheld 3-IN-1 Multimeter Oscilloscope Signal Generator

The DST-201/DST-210 is a versatile multifunction tester developed by FNIRSI, tailored for electronics repair and R&D. This all-in-one device integrates multiple essential testing functions, addressing a broad spectrum of measurement requirements.

Key Features:

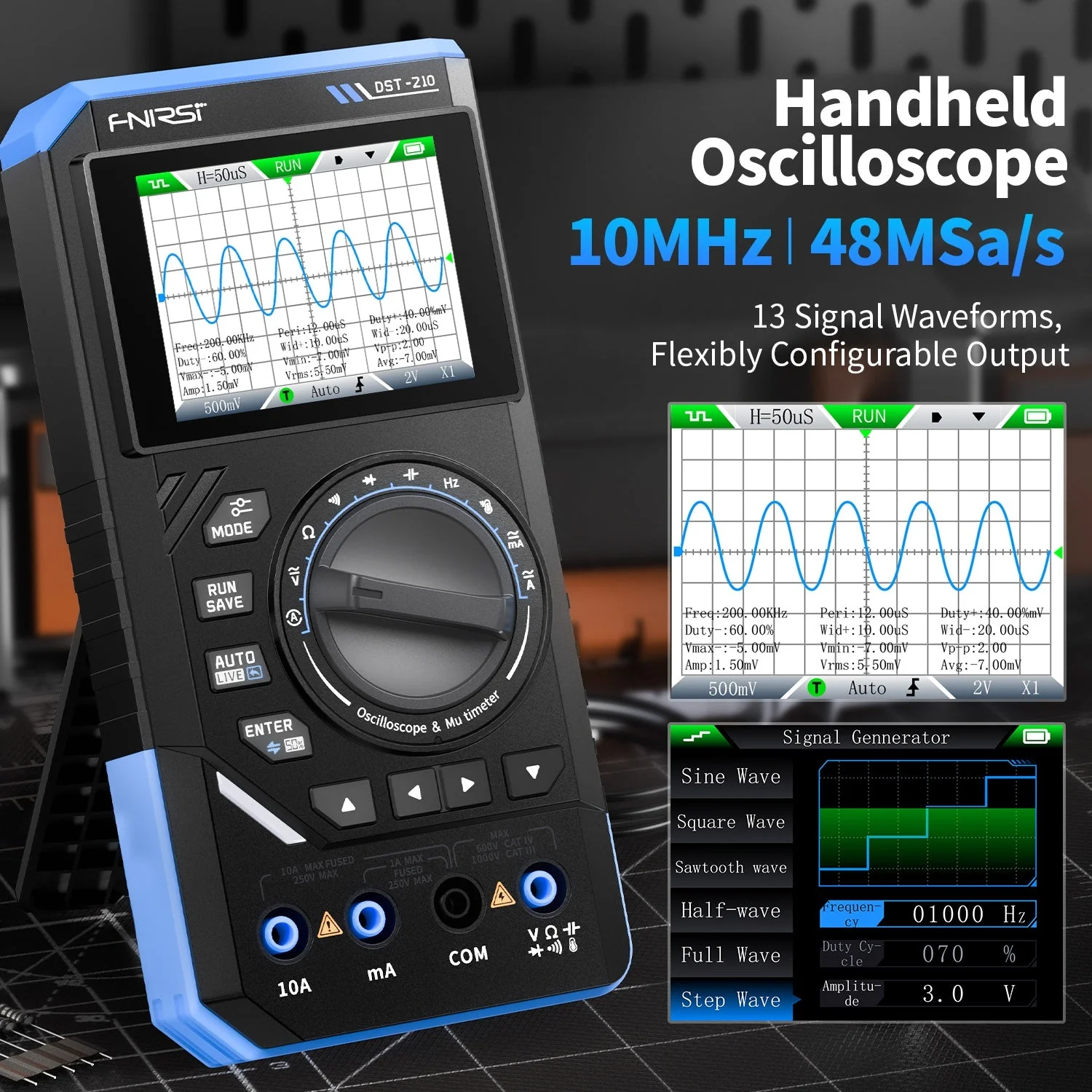

High-precision oscilloscope function:

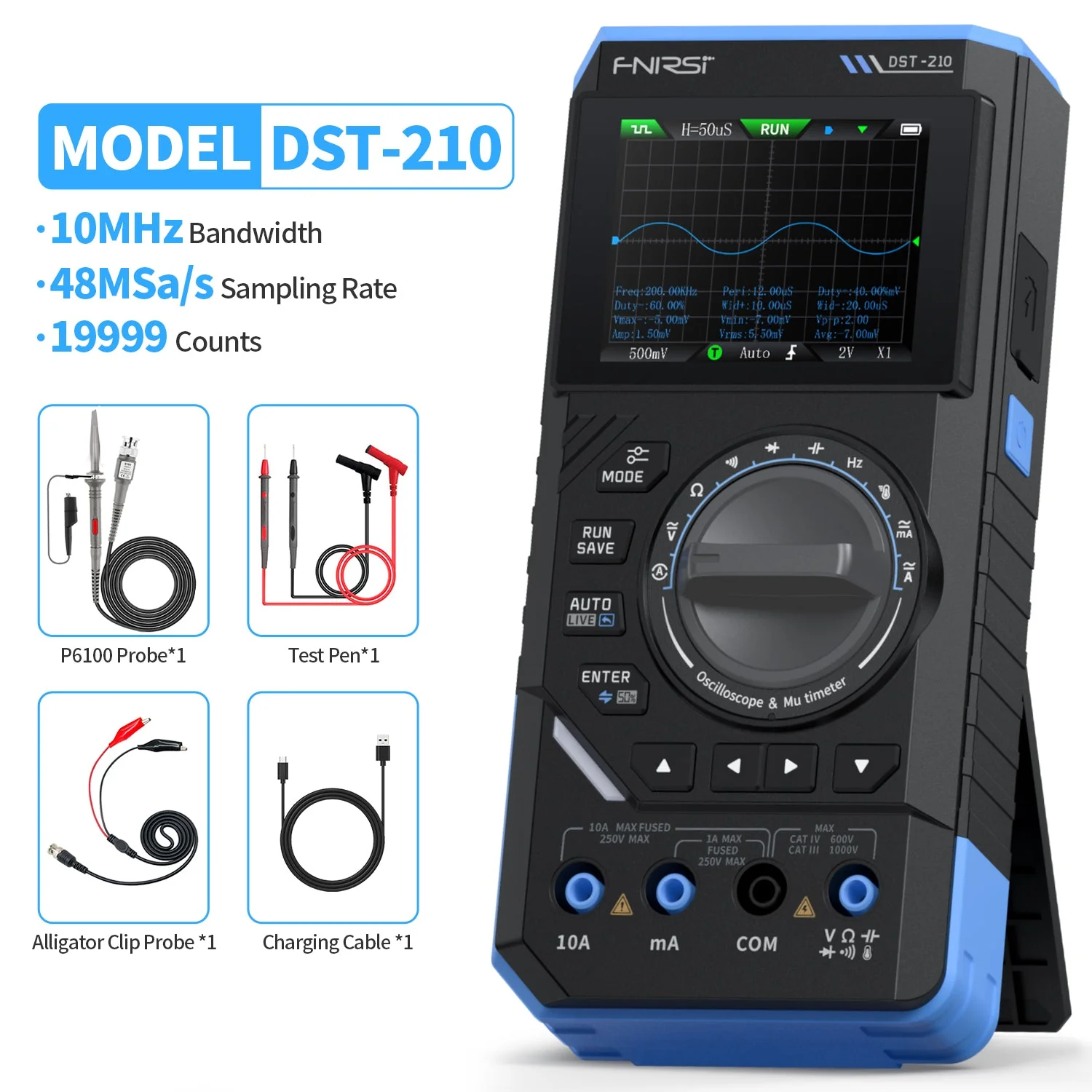

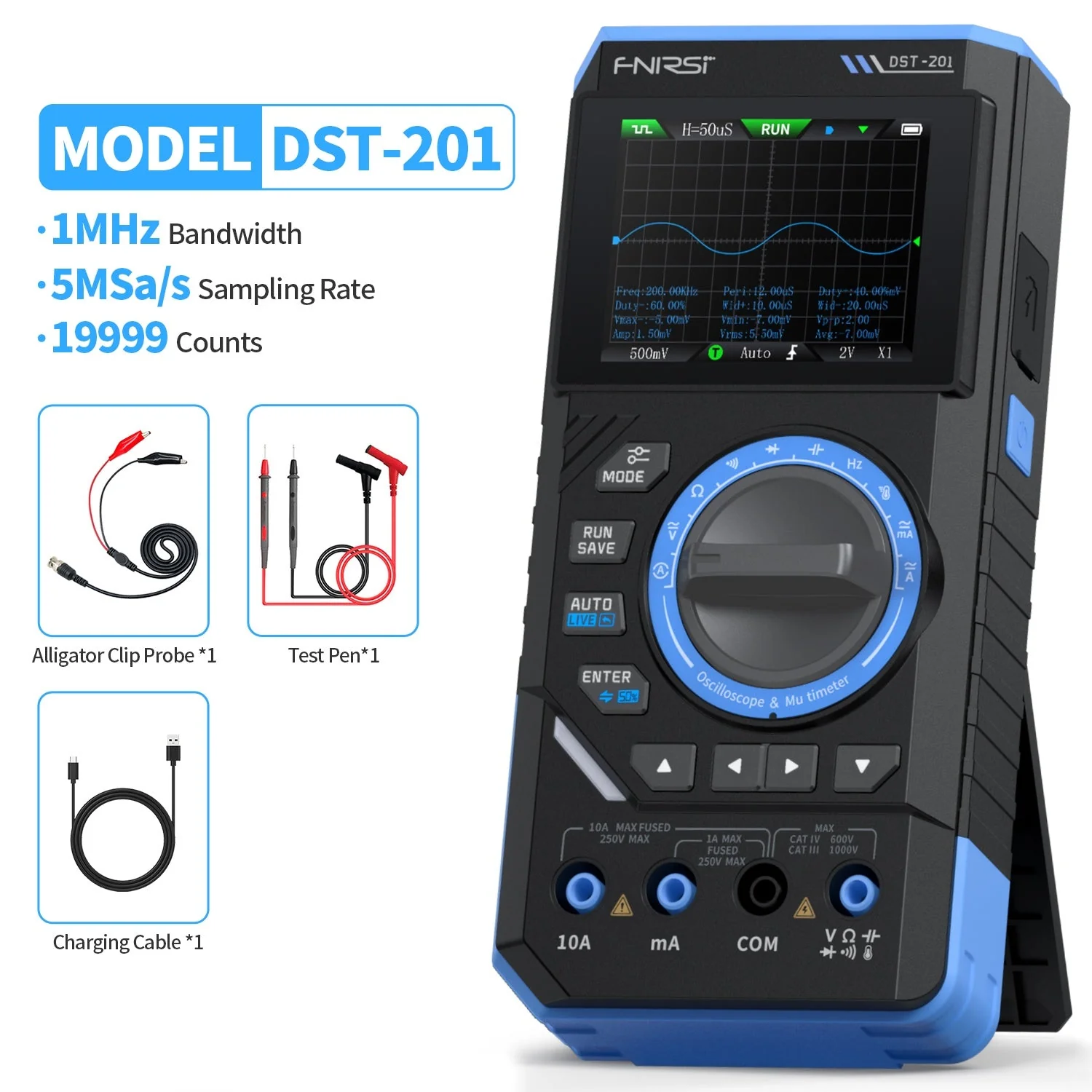

FNIRSI DST-201 provides a sampling rate of 5MSa/s and an analog bandwidth of 1MHz, DST-210 provides a sampling rate of 48MSa/s and an analog bandwidth of 10MHz, ensuring waveform analysis. It is equipped with voltage protection up to ±400V, suitable for a wide range of applications.
Multi-function signal generator function:
Supports 13 waveforms with a frequency range of 0-10KHz and an adjustable output voltage of 3V. The frequency, amplitude and duty cycle can all be fine-tuned to meet various testing needs.

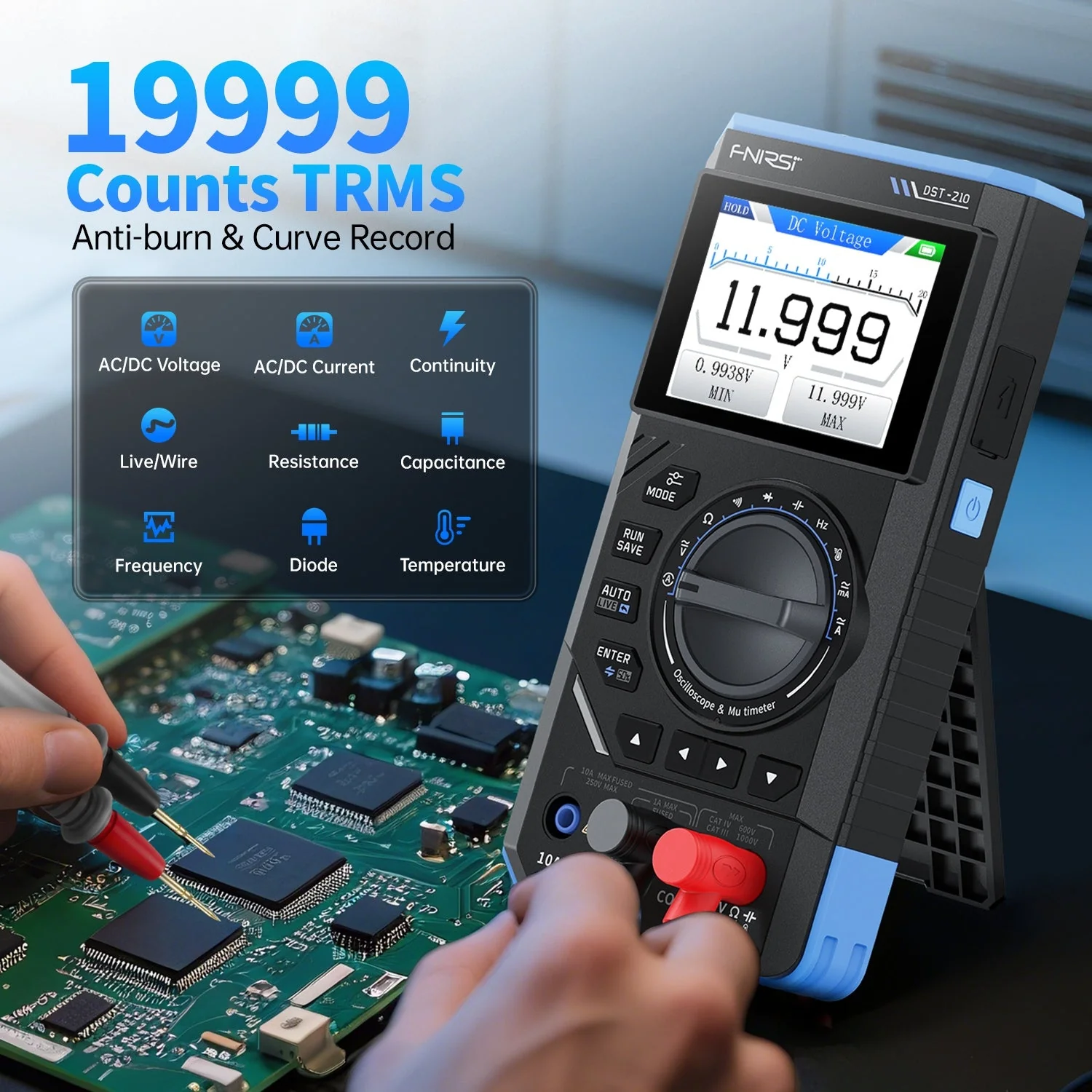

Comprehensive multimeter function:

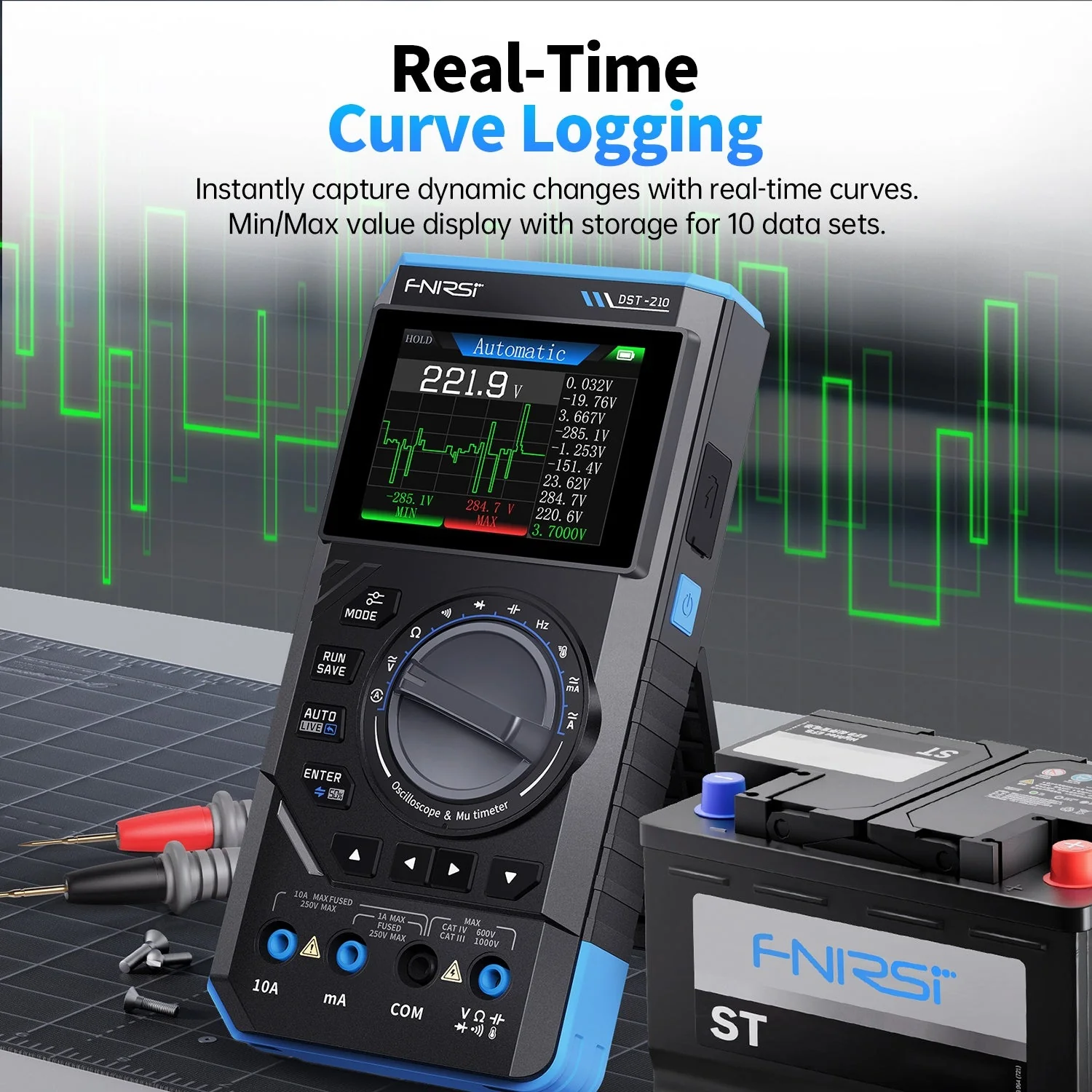

FNIRSI DST-201/210 includes a variety of functions such as recording mode, automatic measurement, AC/DC voltage, AC/DC current, resistance, capacitance, diode/continuity, frequency, temperature, data hold and LIVE zero/live line, providing powerful functions for various measurements.

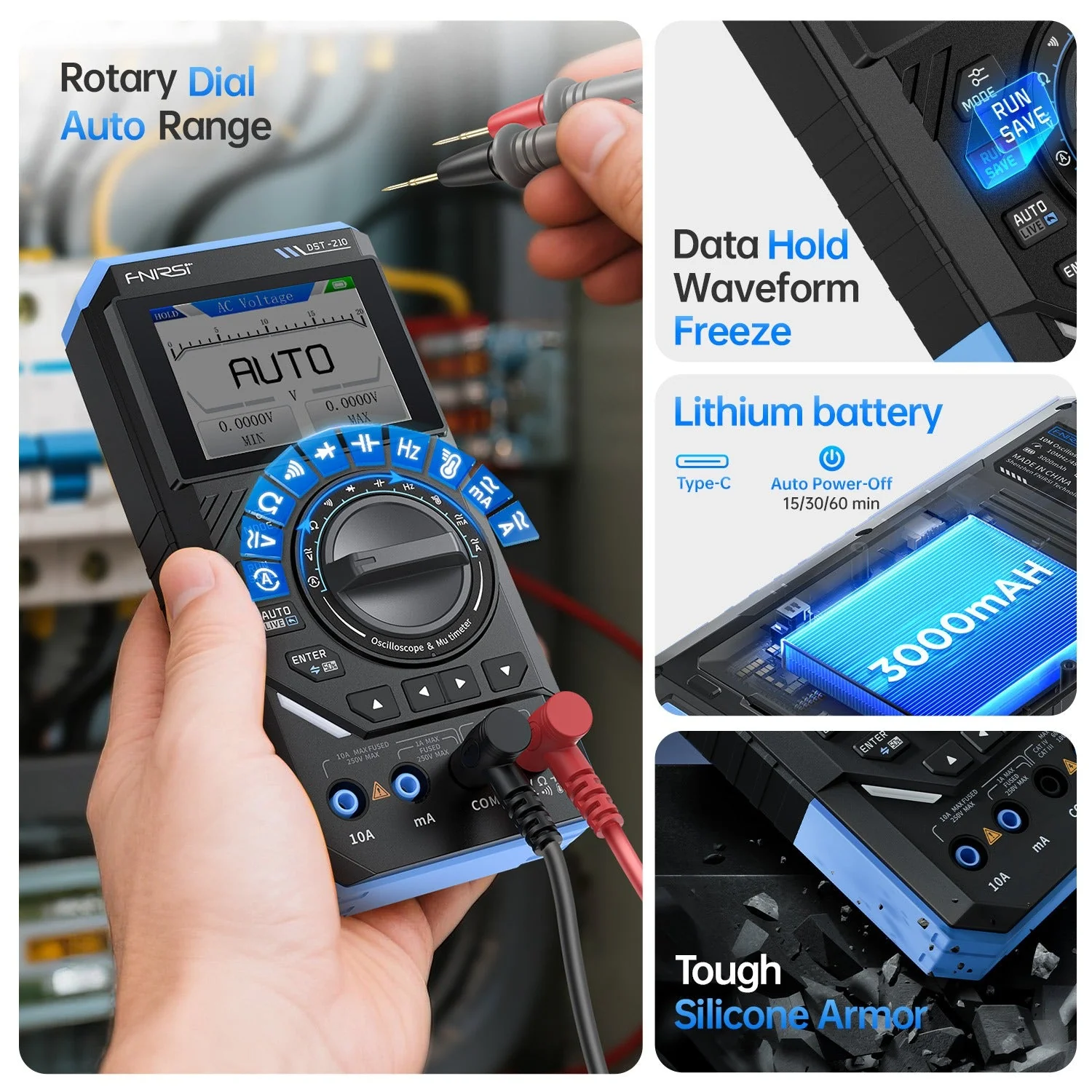

Overload protection and portable design:

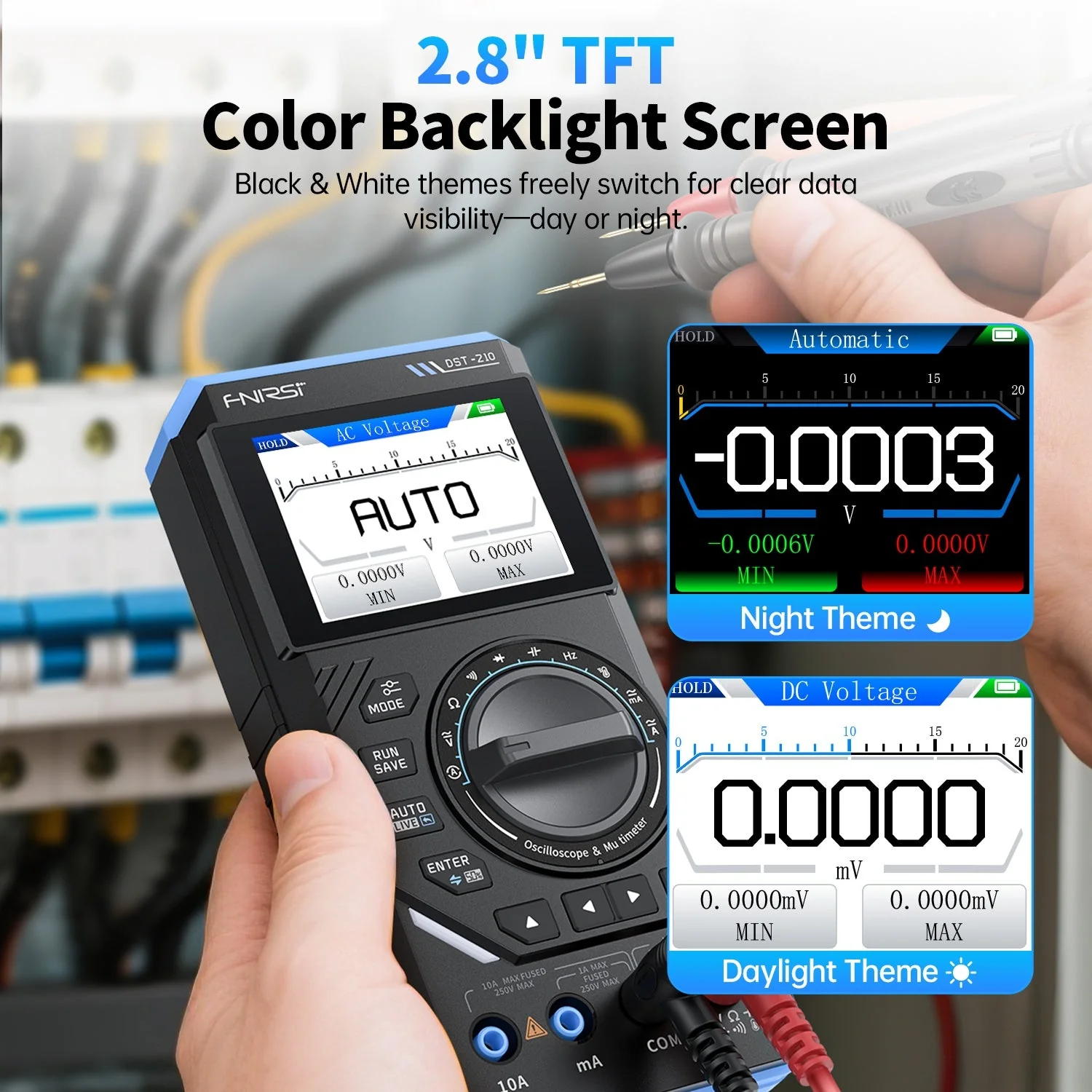

The device is equipped with overload protection and low battery warning for added safety. Its compact and lightweight design, as well as a 2.8-inch TFT color display, ensures clear and intuitive visual effects. Built-in 3000mAh rechargeable battery supports up to 15 hours of standby time, perfect for mobile use.
User-friendly and multifunctional:
FNIRSI DST-201/210 is powerful and flexible, easy to operate, and is an ideal multifunctional instrument for professionals, factories, schools, hobbyists and home users.

Specifications

Basic Parameters:

Model

DST-210 / DST-201

Screen Material

2.8 inches TFT Colorful Screen

Backlight

Brightness adjustable

Power Supply

TYPE-C (5V/1A)

Battery

3000mAh

Languages

中文、English

Product Size

≈177.43×87.47×34.5mm

Bare Weight

≈300g

Oscilloscope Parameters:

Sampling Rate

DST-210: 48MSa/s
DST-201: 5MSa/s

Analog Bandwidth

DST-210: 10MHz
DST-201: 1MHz

Input Impedance

1MΩ

Coupling Mode

AC/DC

Test Voltage Range

1:1 probe: 80Vpp (+40V)
10:1 probe: 800Vpp (+400V)

Vertical Sensitivity

10mV/div ~ 10V/div(x1)

Vertical Displacement

Adjustable with indicators

Horizontal Time Base

DST-210: 50ns~20s
DST-201: 500ns~20s

Trigger Mode

Auto / Normal / Single

Trigger Type

Rising Edge & Falling Edge

Trigger Level

Adjustable with indicators

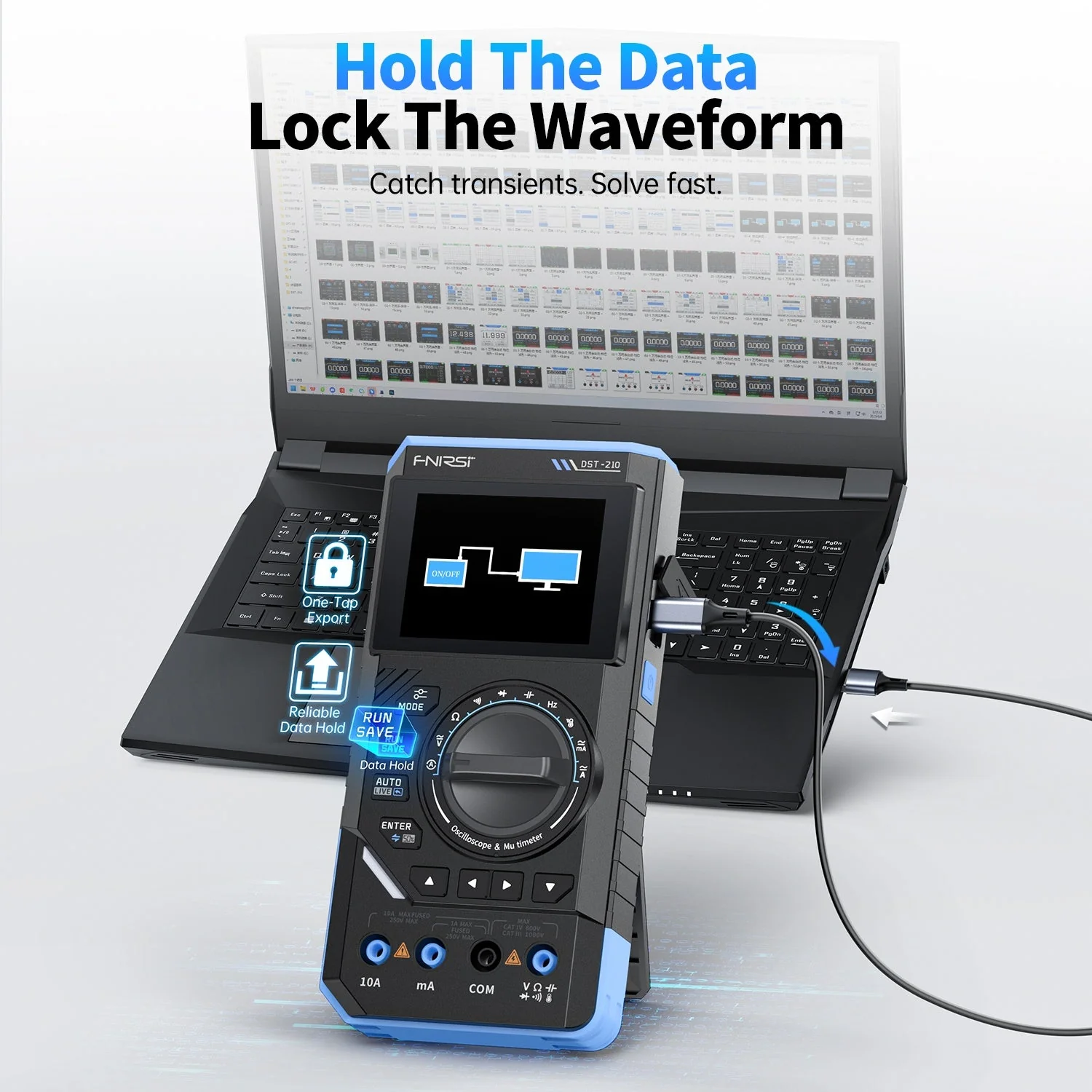

Waveform Freeze

Support(HOLD function)

Auto Measurement

Max, Min, Avg(Vavg), RMS, VPP, Freq, Period, Duty Cycle

Multimeter Parameters:

DC Voltage

1.9999V / 19.999V / 199.99V / 1000V

AC Voltage

1.9999V / 19.999V / 199.99V / 750.0V

DC Current

19.999mA / 199.99mA / 1.9999A / 9.999A

AC Current

19.999mA / 199.99mA / 1.9999A / 9.999A

Resistance

19.999MΩ / 1.9999MΩ / 199.99KΩ / 19.999KΩ
1.9999KΩ / 199.99Ω

Capacitance

999.9uF / 99.99uF / 9.999uF / 999.9nF / 99.99nF / 9.999nF
9.999mF / 99.99mF

Frequency

9.999MHz / 999.9KHz / 99.99KHz / 9.999KHz / 999.99Hz / 99.99Hz / 9.999Hz

Temperature

(-55~1300℃) / (-67~2372℉）

Diode / Continuity

Support

Single Probe AC Voltage Measurement (LIVE)

Support

Signal Generator Parameters:

Output Waveform

Support 13 types of waveform output

Waveform Frequency

DST-210: 0-50KHz
DST-201: 0-10KHz

Square Duty Cycle

0-100%, Square and Sawtooth are adjustable

Waveform Amplitude

0.1V-3.0V
